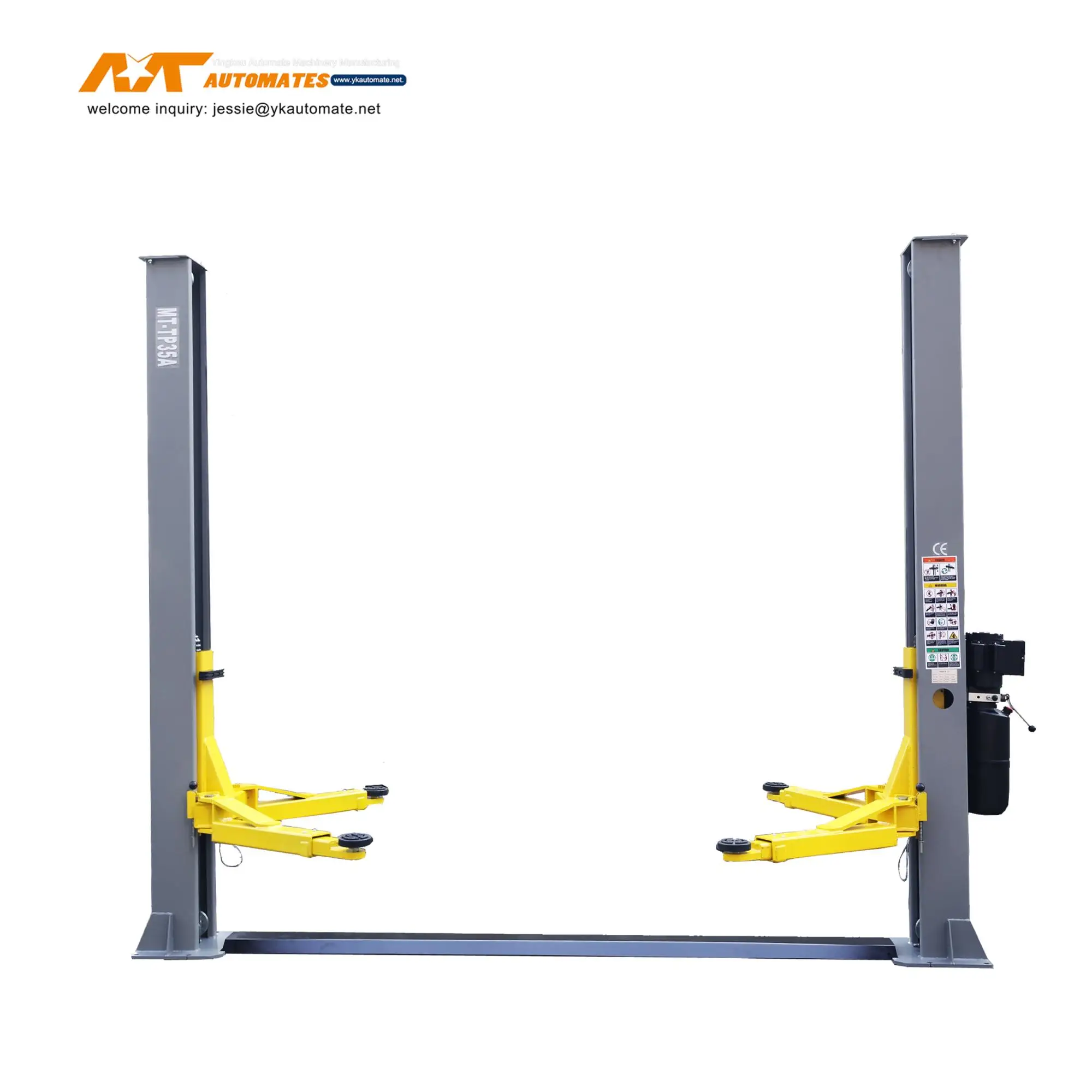

MT 3.5T Two post hydraulic Car Lift MT-TP35A for hot sale

FOB Reference Price:Get Latest Price
$600.00 - $1,000.00 / Set | 1 Set/Sets (Min. Order)
Lifting Height(mm):
1800mm
Overall Width(mm):
3340mm
Report Suspicious Activity
Overview
Quick Details
Design:
Two Post
Type:
Double Cylinder Hydraulic Lift
Certification:
CE
Lifting Capacity:
3500kg
Place of Origin:
Liaoning, China
Brand Name:
MT
Model Number:
MT-TP35A
Warranty:
18 Months
Motor power:
2 .2kw
Min.height:
125mm
Overall height:
2830mm
Overall width:
3340mm
Lifting Time:
50s
Width between columns:
2850mm
Weight:
550kg
Power Supply:
110/220/230/380/400V(optional)
Color:
Customer Request
Product name:
Two Post Car Lifter
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Packaging Details:Standard export packaging
2850mm*450mm*670mm
Delivery Time:3-20days from payment
Port
Dalian
Product Description

Product Application


This Manual release lift is for Car maintenance,beauty, painting,quick tyre replacement etc.it is a good choice for home garage car shop ,work shop,Auto repair shop etc.
SPECIFICATIONS FOR Two Post Car Lift MT-TP35A

Specification
Lift capacity
kg/lbs
3500/7716
Lifting height
mm
1800
Min.height
mm
125


Column Specification
Overall height
mm
2830
Overalll width
mm
3340
Width between columns
mm
2850

power
Motor power
KW
2.2
Power supply
V
100/110/220/230/380/400

Main Features

1. Floor plate design is ideal choice for low ceiling shop .
2. By two cylinder,plate and wire rope chain balance system, lifting off and landing smooth.
3.Hydraulic power unit configuration throttling device, can always adjust the rate of decline.
4.Asymmetric column allows wider drive through clearance.
5.Manual lock release from one sides, more convenient to use
6.Take three stages arm design, a larger adjustment range, for different vehicle chassis.
7.Retractable tray with three screw designed, adjustment range 110-240mm.
8.Rubber pad door-opening protection.
9.Screw type up adjustment adapter. Truck adapters can optional . Standard guard rail Toe protection.
10.Have adopted 115% dynamic and 150% static loading tested.
11.CE Approved

Detailed Images
car lift parts

Name: Beam arm lock

Brand: MT-Automates

Original: China

This two post car lift machine need this Beam arm lock to keep safety During maintenance use.

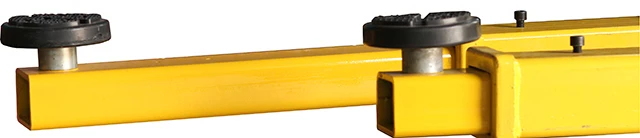

car lift parts

Name: Beam arm
Brand: MT-Automates
Original: China

Beam arm with lock.arm lock is the second of this two post car lift.

car lift parts

Name: Tray
Brand: MT-Automates
Original: China
tray with Non-slip mat.

car lift parts

Name:  Second arm lock
Brand: MT-Automates
Original: China

Second Arm lock in details,when you operate the machine,don't forget to use this second arm lock keep sure your safety every time.

car lift parts

Name: Strengthen arm
Brand: MT-Automates
Original: China

The Strengthen arm structure in super details,keep sure the 3500KG capacity of this two post machine.

car lift parts

Name: safety lock sructure with three spiral tray
Brand: MT-Automates
Original: China
tray with Non-slip mat.

safety lock sructure with three spiral tray,High-density fine wire rope with resistant to stretching.

car lift parts

Name: Second arm lock
Brand: MT-Automates
Original: China
Second Arm lock in details,when you operate the machine,don't forget to use this second arm lock keep sure your safety every time.


car lift parts

Name: Pump station
Brand: MT-Automates
Original: China
This two post car lift  handling by this Pump station,just add 12L Hydraulic oil,and Connect the power then you can operating this big machine.

Packing & Delivery
car lift Packaging
Size
2850mm (L) * 450mm (W) * 670mm (H)
Weight
550kg



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Our Factory

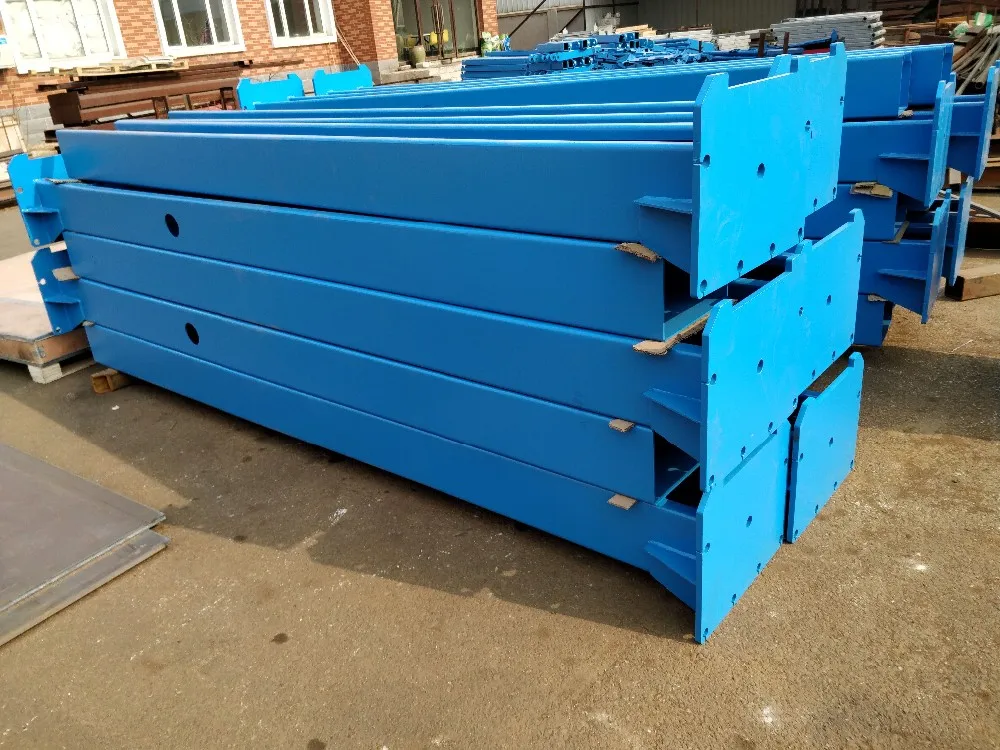

Lifts semi-finished products of our Factory,welcome to view our Factory!

car lift parts

car lift parts


Two post car lift type of

MT-TP35A .


car lift parts


Package of scissor car lift.

Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* OEM Service.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery remotely.

Related Products

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

FAQ

Q: Are you original manufacturer?

A: Yes, Yingkou Automate Machinery Cp.,Ltd is a official leading manufacture in manufacture of car lift in China and we have the whole series products you need.

Q: Which payment terms are available to us?

A: T/T term or L/C term. On T/T term, 50%in advance, 50% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.

Q: How long will the delivery time take?

A: Normally it will take about 30-40 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 20 days.

Q:Could your provide installation service oversea?

We can provide your detail installation manual and drawing if necessary.

Q:Can you provide the voltage of my country?

Yes, we can. We have sold our products in over 50 different countries all over the world. We can offer all the different voltages in different countries.

Spare Parts When You Need Them

We promise that spare parts will be delivered by DHL free during the 18 month you purchased from us.


Quality warranty

We grant our clients a 18 month for any machine purchased from us.
