Double Cylinder backyard buddy car lift with 4T capacity lifting

FOB Reference Price:Get Latest Price
$850.00 - $950.00 / Set | 1 Set/Sets (Min. Order)
Lifting Height(mm):
1800mm
Overall Width(mm):
2850mm
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 2 - 30 >30
Est. Time(days) 15 45 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Samples:
$1,000.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Design:
Two Post
Type:
Double Cylinder Hydraulic Lift
Certification:
CE
Lifting Capacity:
4000kg
Place of Origin:
Liaoning, China
Brand Name:
MT
Model Number:
MT-FCTP35B
Warranty:
18 Months
Motor power:
2 .2kw
Min.height:
120mm
Overall height:
3730mm
Overall width:
3340mm
Lifting Time:
40s-50s/50s
Width between columns:
2850mm
Weight:
650kg
Power Supply:
110/220/230/380/400V(optional)
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Packaging Details
3750mm*530mm*770mm
Delivery Time:3-20 Days
Delivery Port:Dalian,China
Port
Dalian
Lead Time :
Quantity(Sets) 1 - 1 2 - 30 >30
Est. Time(days) 15 45 To be negotiated
Product Description

Product Application

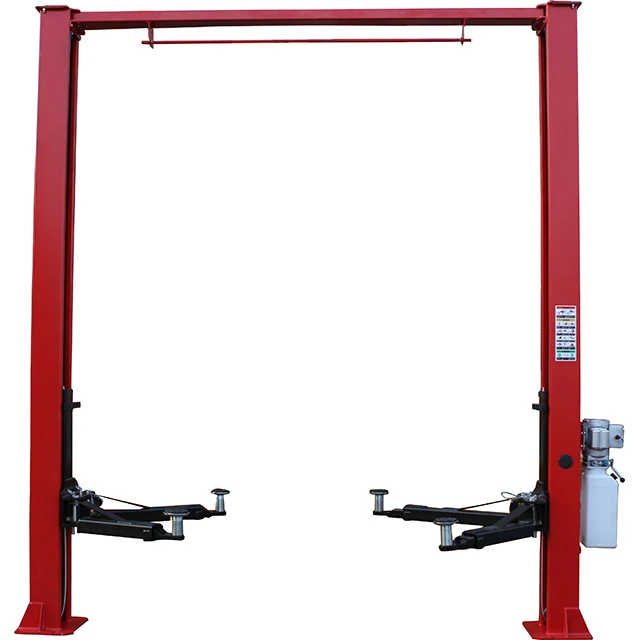

Double Cylinder backyard buddy car lift with 4T capacity lifting
This Symmetric Column Clear Floor lift is for Car maintenance,beauty, painting,quick tyre replacement etc.it is a good choice for home garage car shop ,work shop,Auto repair shop etc.
SPECIFICATIONS FOR Symmetric Column Clear Floor lift MT-FCTP35B

Specification
Lift capacity
kg/lbs
4000/8818
Lifting height
mm
1800
Min.height
mm
120

Column Specification
Overall height
mm
3730
Overalll width
mm
3340
Width between columns
mm
2850

power
Motor power
KW
2.2
Power supply
V
100/110/220/230/380/400

Main Features

Double Cylinder backyard buddy car lift with 4T capacity lifting

1. Clear floor design makes easy working under beneath the cehicle.

2. By two cylinder,plate and wire rope chain balance system lifting off and landing smooth .

3. Hydraulic power unit configuration throttling device, can always adjust the rate of deline.

4. Manual lock release from two sides.

5. With 24V limit switch. Asymmetric column allows wider drive through clearance.

6.Rubber support pad with spiral adjust the height and in stages adjust the height, optional.

7. Rubber pad door-opening protection.

8. Toe protection.

9. Trucks adapter can optional. Have adopted 115% dynamic and 150% static loading tested.

10. CE approved

Detailed Images

Machine Parts

Name: Beam arm lock

Brand: MT-Automates

Original: China

Beam arm lock is the second lock of this Symmetric Column Clear Floor Lift.

Main Features

Name: Support pad
Brand: MT-Automates
Original: China

Every lift arm has this Support pad to increase the touching and Non-slip.

Machine Parts

Name: Dust cover
Brand: MT-Automates
Original: China

Main Features

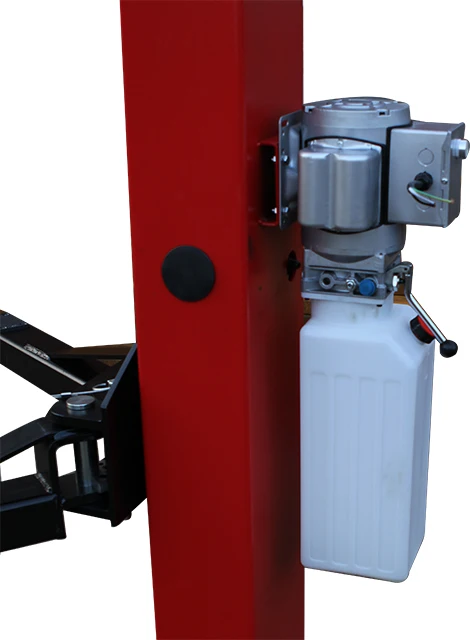

Name: Pump Station
Brand: MT-Automates
Original: China

TWO Cylinder Hydraulic system design.


Packing & Delivery
Packaging
Size
3750mm (L) * 530mm (W) * 770mm (H)
Weight
0.65 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* OEM Service.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery remotely.

FAQ1

Q: Are you original manufacturer of car lift?

A: Yes, Yingkou Automate Machinery Cp.,Ltd is a official leading manufacture in manufacture of car lift in China and we have the whole series car lift products you need.

Q: Which payment terms are available to us?

A: T/T term or L/C term. On T/T term, 50%in advance, 50% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.

Q: How long will the delivery time take regarding your order car lift?

A: Normally it will take about 30-40 days to produce the ordered car lift. Most of the time, we can have an immediate delivery of our regular car lift in 20 days.

Q:Could your provide installation service oversea?

We can provide your detail installation manual and drawing if your order car lift machine is necessary.

Q:Can you provide the ordered car lift machine the same voltage of my country?

Yes, we can. We have sold our car lift product in over 50 different countries all over the world. We can offer all the different voltages in different countries.

Spare Parts When You Need Them

We promise that spare parts regarding your ordered car lift will be delivered by DHL free during the 18 month you purchased from us.

Quality warranty

We grant our clients a 18 month for any car lift machine purchased from us.
