3.5T Manual release floorplate 2 post car lift

FOB Reference Price:Get Latest Price
$700.00 - $820.00 / Set | 1.0 Set/Sets (Min. Order)
Lifting Height(mm):
1800mm
Overall Width(mm):
3340mm
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 2 - 30 >30
Est. Time(days) 15 45 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Samples:
$1,000.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Design:
Two Post
Type:
Double Cylinder Hydraulic Lift
Certification:
CE
Lifting Capacity:
3500kg
Place of Origin:
Liaoning, China
Brand Name:
MT
Model Number:
MT-TP35B
Warranty:
18 Months Months
Motor power:
2 .2kw
Min.height:
120mm
Overall height:
2830mm
Overall width:
3340mm
Lifting Time:
50s
Width between columns:
2850mm
Weight:
550kg
Power Supply:
110/220/230/380/400V(optional)
Supply Ability
Supply Ability:
1000.0 Set/Sets per Month
Packaging & Delivery
Packaging Details
Packaging Details
2850*720*460 1Pcs (Post)
930*260*320 1 Pcs(Pump)
Delivery Time:3-20 Days
Delivery Port:Dalian,China
Port
Dalian
Lead Time :
Quantity(Sets) 1 - 1 2 - 30 >30
Est. Time(days) 15 45 To be negotiated
Video Description
Product Description

Product Application

3.5T Manual release floorplate 2 post car lift
This two post car lift is for Car maintenance,beauty, painting,quick tyre replacement etc.it is a good choice for home garage car shop ,work shop,Auto repair shop etc.
SPECIFICATIONS FOR Two Post Car Lift MT-TP35B

Specification
Lift capacity
kg/lbs
3500/7716
Lifting height
mm
1800
Min.height
mm
120

Main performance parameters
Overall height
mm
2830
Overalll width
mm
3340
Width between columns
mm
2850

Hydraulic system
Motor power
KW
2.2
Power supply
V
100/110/220/230/380/400

Main Features

2 post car lift

1. Floor plate design is ideal choice for low ceiling shop .

2. By two cylinder,plate and wire rope chain balance system, lifting off and landing smooth.

3.Hydraulic power unit configuration throttling device, can always adjust the rate of decline.

4.Asymmetric column allows wider drive through clearance.

5.Manual lock release from one sides, more convenient to use

6.Take three stages arm design, a larger adjustment range, for different vehicle chassis.

7.Retractable tray with three screw designed, adjustment range 110-240mm.

8.Rubber pad door-opening protection.

9.Screw type up adjustment adapter. Truck adapters can optional . Standard guard rail Toe protection.

10.Have adopted 115% dynamic and 150% static loading tested.

11.CE Approved

Detailed Images

2 post car lift Parts

Name: Dust cap

Brand: MT-Automates

Original: China

Dust cap

2 post car lift Features

Name: Beam arm lock
Brand: MT-Automates
Original: China

Beam arm lock

2 post car lift Parts

Name: Pump station
Brand: MT-Automates
Original: China

This two post car lift machine can not work without this pump station.

2 post car lift Features

Name: Safety cover
Brand: MT-Automates
Original: China
Rubber door-opening protection safety cover

Packing & Delivery

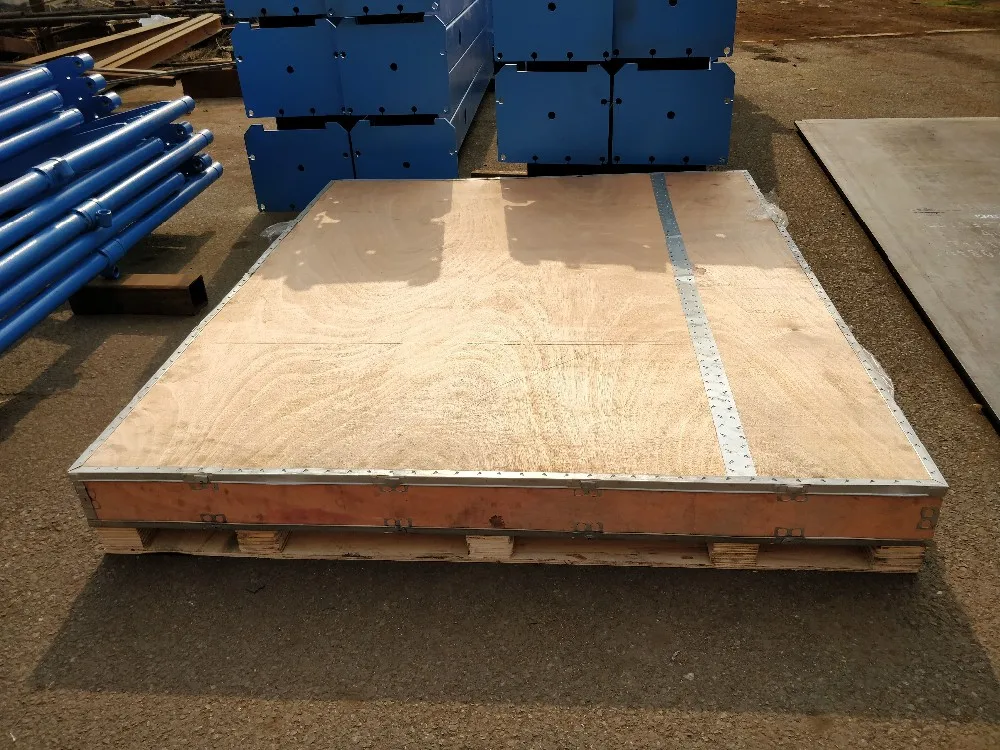

Packaging
Size
2850mm (L) * 450mm (W) * 670mm (H)
Weight
550kg



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* OEM Service.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery remotely.

FAQ1

Q: Are you original manufacturer of car lift?

A: Yes, Yingkou Automate Machinery Cp.,Ltd is a official leading manufacture in manufacture of car lift in China and we have the whole series car lift products you need.

Q: Which payment terms are available to us?

A: T/T term or L/C term. On T/T term, 50%in advance, 50% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.

Q: How long will the delivery time take regarding your order car lift?

A: Normally it will take about 30-40 days to produce the ordered car lift. Most of the time, we can have an immediate delivery of our regular car lift in 20 days.

Q:Could your provide installation service oversea?

We can provide your detail installation manual and drawing if your order car lift machine is necessary.

Q:Can you provide the ordered car lift machine the same voltage of my country?

Yes, we can. We have sold our car lift product in over 50 different countries all over the world. We can offer all the different voltages in different countries.

Spare Parts When You Need Them

We promise that spare parts regarding your ordered car lift will be delivered by DHL free during the 18 month you purchased from us.

Quality warranty

We grant our clients a 18 month for any car lift machine purchased from us.
