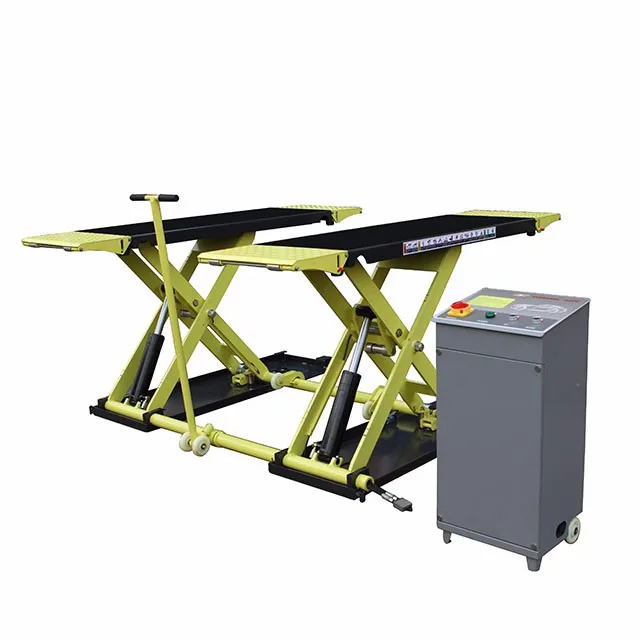

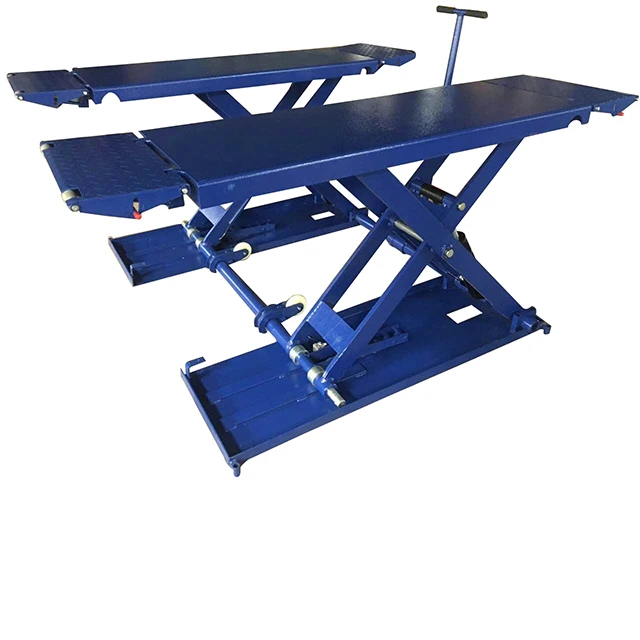

Hydraulic car lift REACH CE Certified Scissor car lift for Home Garage

FOB Reference Price:Get Latest Price
$900.00 - $1,100.00 / Set | 1 Set/Sets (Min. Order)
Lifting Height(mm):
1000mm
Overall Width(mm):
1910mm
Lead Time:
Quantity(Sets) 1 - 1 2 - 30 >30
Est. Time(days) 15 45 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Samples:
$1,000.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Design:
Scissor
Type:
Double Cylinder Hydraulic Lift
Certification:
CE
Lifting Capacity:
4000kg
Place of Origin:
Liaoning, China
Brand Name:
MT
Model Number:
MT-ML4000ES
Warranty:
18 Months
Name:
Scissor car lift
Color:
Customer Request
Min.height:
110mm
Lifting Time:
30S
Motor power:
2 .2kw
Overall length for platform:
1940mm
Overall width for platform:
1910mm
Width between platform:
850(700 optional)
Power supply:
110/220/230/380/400V(optional)
Lifting Height(mm):
1000mm
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Packaging Details
2050mm*1550mm*220mm plateform 1pc
380mm*420mm*1050mm control box 1pc
Delivery Time:3-20 Days
Delivery Port:Dalian,China
Port
Dalian
Lead Time :
Quantity(Sets) 1 - 1 2 - 30 >30
Est. Time(days) 15 45 To be negotiated
Video Description
Item Details
Produt Name:REACH CE Certified Scissor Car Lift for Home Garage
Brand Name: MT
Deliavery Port: DALIAN,China
Supply Ability: 500 Unit/Units per month
Payment Terms: T/T
Packing Details: Plywood
Delivery Time: Shipped 3-20days after deposit
Waranty Time: 18 months
Product Description

Product Application

This Scissor car lift is for Car maintenance,beauty, painting,quick tyre replacement etc.it is a good choice for home garage car shop ,work shop,Auto repair shop etc.this car lift Completely landed is 110mm so don't worry it will stand you so much space, this car lift is so Save space,Ultra thin,Easy to move,portable machine.if you do not have a large shop Open-air is ok.

SPECIFICATIONS FOR Mid-Rise Scissor car lift MT-ML4000ES

Specification
Lift capacity
kg/lbs
4000/8819
Max.lifting height
mm
1000
Min.height
mm
110

 platform
Overall length for platform
mm
1940
Overall width for platform
mm
1910
Width between platform
mm
700(850 optional)

power

Motor power
KW
202
Power supply
V
110/220/230/380/400V(optional)

Main Features

1.Ideal choice for quick tire replacement and simple service alongside of vehicle

2.Surface mounted or movable used, with optional movable kits.

3.Special and practical platform extension design broadens your service scope.

4.Pneumatic release system decreases noise emitted during service work.

5.Configuring mechanical safety lock to ensure that lift at different heights to get the absolute security.

6.Optional 24V control voltage

7.Anti- skid platform effectively prevents sudden drop-down of vehicles.

8.Dynamic testing with 115% of rated capacity and static testing with 150% of rated capacity.

Detailed Images

Machine Parts

Name: Electromagnetic lock

Brand: MT-Automates

Original: China

Electromagnetic unlock


Main Features

Name: Bearing slides and Metal wheels
Brand: MT-Automates
Original: China

Bearing sliding wheel to increase the sliding stability and durability

Machine Parts

Name: slide plate
Brand: MT-Automates
Original: China

The vohicle will be easier go ahead with this slide plate

Main Features

Name: Control box
Brand: MT-Automates
Original: China
This car lift machine handling by this control box.

Machine Parts

Name: High-end electrical components
Brand: MT-Automates
Original: China
High-end electrical components.

Packing & Delivery
Packaging
Size
2050mm (L) * 1550mm (W) * 220mm (H)
380mm (L) * 420mm (W) * 1050mm (H)
Weight
056T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Certifications
FAQ
Q: Which payment terms are available to us?

A: T/T term or L/C term. On T/T term, 50%in advance, 50%balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.

Q: How long will the delivery time take?

A: Normally it will take about 30-40 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 20 days.

Q:Could your provide installation service oversea?

We can provide your detail installation manual and drawing if necessary.

Q:Can you provide the voltage of my country?

Yes, we can. We have sold our products in over 50 different countries all over the world. We can offer all the different voltages in different countries.

Spare Parts When You Need Them

We promise that spare parts will be delivered by DHL free during the 18 month you purchased from us.

Quality warranty

We grant our clients a 18 month for any machine purchased from us.
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* OEM Service.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery remotely.
